Automatic Control Valves

(Deluge Valves)
Deluge valves are automatic control valves used in fire suppression systems, particularly in high-risk areas, which provide sudden and wide-area water/foam discharge. These valves are normally in a closed position and can be opened remotely or manually, allowing water or foam to be discharged simultaneously from all nozzles in the connected pipeline.

In addition to being activated fully automatically by a signal from the fire detection system, a Deluge Valve can also be opened by a remote signal from an operator. For situations where electrical power is lost, there is an "emergency release valve" on the deluge valves. This allows for the valve to be opened in a short period, such as 1-2 seconds, by going directly to it even in an emergency scenario where electrical power is lost.

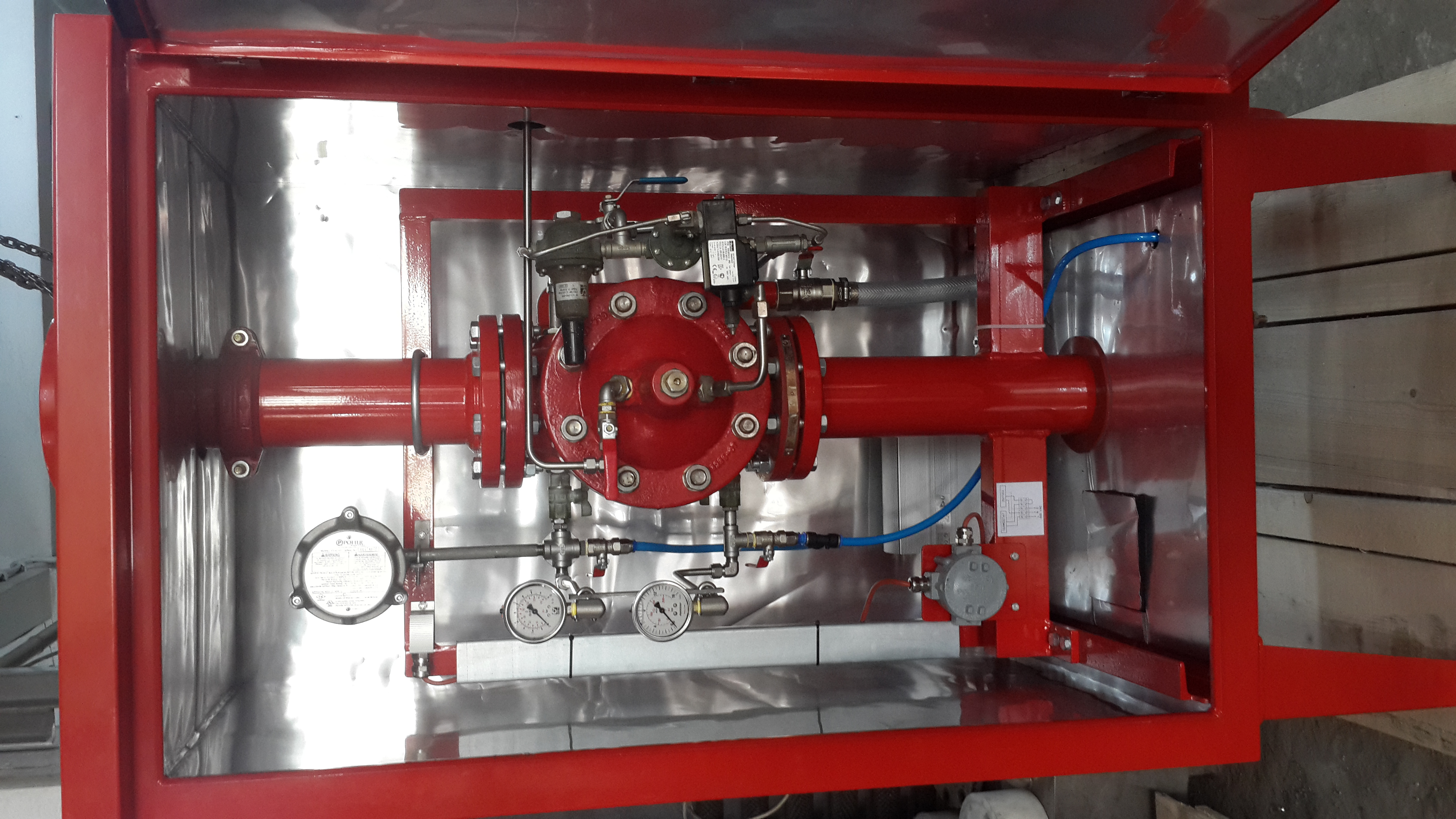

When Deluge Valves are to be used in regions where temperatures can drop below the freezing point of water, they can be delivered inside specially manufactured cabinets equipped with heaters and thermostats.

Areas of Use:

  • Oil and gas industry:
    Refineries, oil wells, pipeline pump stations, LNG (liquefied natural gas) storage facilities.
  • Chemical and Petrochemical Plants:
    Flammable and explosive chemical storage tanks, production reactors, solvent storage areas.
  • Power Generation Facilities:
    Thermal power plants, hydroelectric power plants, transformer stations, and turbine areas.
  • Airports and Aircraft Hangars:
    Refueling zones, maintenance hangars, apron areas.
  • Compatibility with Integrated Security Systems:
    Can be fully integrated with fire detection panels, emergency shutdown (ESD) systems, and automation solutions.
  • Marine and Port Facilities:
    Oil and chemical tanker loading/unloading areas, port fuel depots.
  • Industrial Production Areas:
    Automotive production lines, paint shops, process areas using flammable liquids.
  • Storage and Logistics Centers:
    Flammable material warehouses, hazardous material container areas, bulk packaging warehouses.
  • Mining and Underground Facilities:
    Mine galleries with explosive gas risks, underground power plant compartments..
  • Defense Industry and Military Facilities:
    Ammunition depots, fuel storage sites, missile maintenance facilities.

Advantages:

  • Quick and Simultaneous Response:
    When a fire is detected, all nozzles activate at the same time, rapidly covering a large area before the flame has a chance to grow.
  • Wide Area Protection:
    A single deluge valve can protect a very large facility area, which reduces both installation costs and maintenance needs.
  • High-Speed Response:
    It activates within seconds via a detector or manual command, providing effective control in the initial stage of a fire.
  • Suitability for Harsh Environments:
    It operates reliably under the most challenging conditions, from industrial facilities with explosion risks to aircraft hangars and power plants.
  • Compatibility with Integrated Security Systems:
    It can be fully integrated with fire detection panels, emergency shutdown (ESD) systems, and automation solutions.
  • Low Operating and Maintenance Costs:
    Thanks to its simple mechanical structure, the risk of failure is low; maintenance time and costs are minimal.
  • Compliance with International Standards:
    Safety, performance, and durability are guaranteed with UL certified manufacturing.

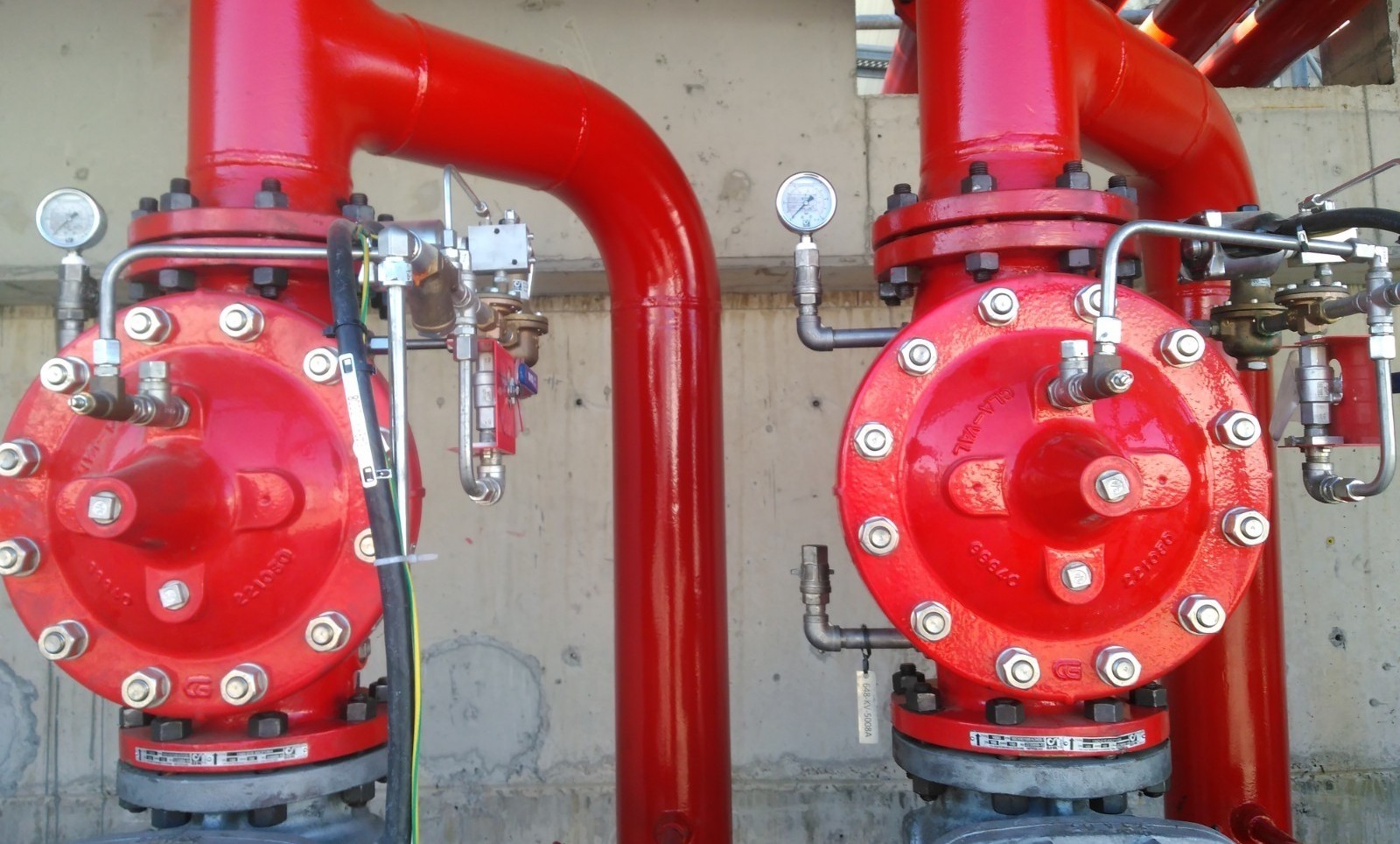

Some Applications
